IP66 Waterproof Telephone
video
IP66 Waterproof Telephone

IP66 Waterproof Telephone

Brief introduction The SC-WR01 IP66 waterproof telephone is engineered to operate in the most severe industrial settings, including underground mines with intense humidity and dust, subway tunnels facing constant vibration and electromagnetic interference, power plants with dramatic temperature shifts, steel mills exposed to molten metal splashes, coastal docks prone to seawater corrosion, and offshore oil fields enduring harsh weather. Its rugged wall-mount or pole-mount design ensures the phone can sustain outdoor installations for up to 10 years without any performance loss. The device adheres to CE European safety standards, RoHS hazardous substances restrictions, ISO9001:2008 quality management certification, and the TUV product safety certification.

Description

Brief Introduction



The SC-WR01 IP66 waterproof telephone is engineered to operate in the most severe industrial settings, including underground mines with intense humidity and dust, subway tunnels facing constant vibration and electromagnetic interference, power plants with dramatic temperature shifts, steel mills exposed to molten metal splashes, coastal docks prone to seawater corrosion, and offshore oil fields enduring harsh weather. Its rugged wall-mount or pole-mount design ensures the phone can sustain outdoor installations for up to 10 years without any performance loss. The device adheres to CE European safety standards, RoHS hazardous substances restrictions, ISO9001:2008 quality management certification, and the TUV product safety certification.

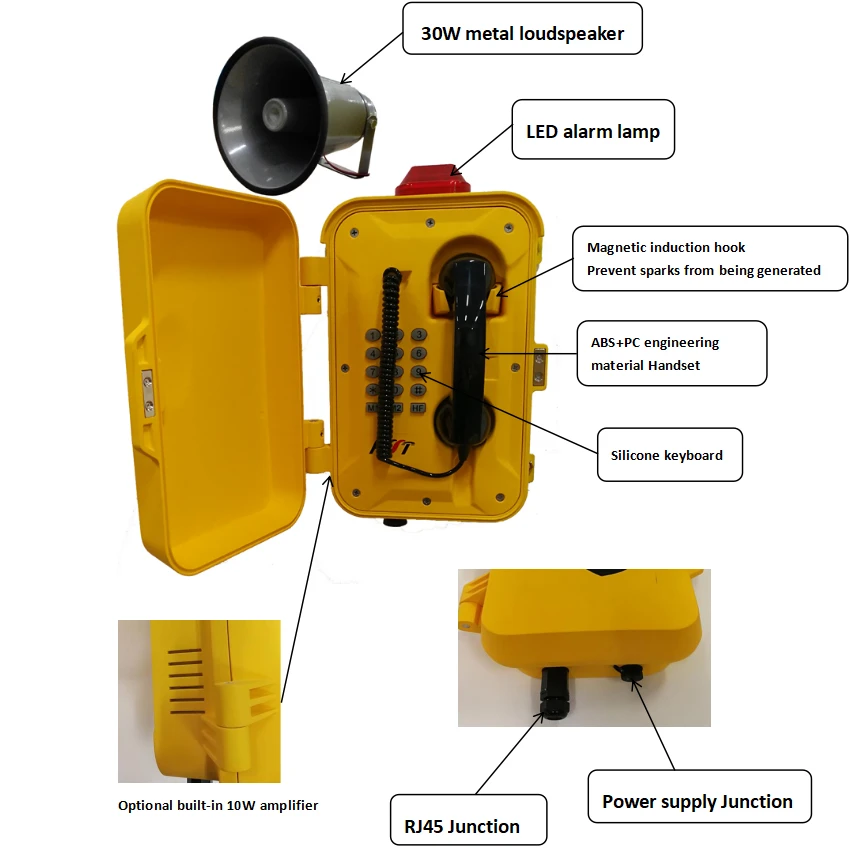

Product Features



  1. The equipment uses a new composite material for its shell, which is stable, has good sealing properties, and is waterproof and dustproof up to IP66 level. It also has excellent corrosion resistance, making it suitable for highly corrosive environments such as seaside and chemical plants.Supports hotline settings and emergency calls for better response to emergencies.
  2. The outer cover is equipped with a stainless steel latch to enhance the overall airtightness, prevent strong winds from blowing the outer cover open, and protect the inner panel.
  3. Lightning protection compliant with ITU-T K.21 standards, easily handling extreme weather conditions.
  4. Dual-interface noise-canceling earpiece, crystal-clear sound quality, clear and interference-free calls.
  5. Earpiece equipped with industrial-grade durable spiral cable, rust-proof and break-proof, resisting intentional damage.
  6. Silicone keyboard, waterproof and dustproof; stainless steel keyboard available upon request..



Basic Parameters



Size

356*273*125MM

Weight

8KG

Audio output

30W

Shell material

Composite new material

Keyboard material

Silicone(optional)

Communication mode

SIP protocol, analog, and direct fiber optic

Installation method

Wall-mounted

Power supply

220V power supply (POE / DC)

Protection level

IP66



product-850-849



Product Configuration



Network

  1. The phone supports SIP V1 (RFC2543) and V2 (RFC3261) protocols.
  2. Multiple server modes: proxy server/backup server
  3. Supports fixed IP/DHCP/PPPoE dial-up.
  4. DNS (SRV RFC3263)/TFTP/DHCP/PPPoE client.
  5. Telnet/HTTP/HTTPS services.
  6. STUN intranet traversal.

Special Features

  1. One-touch IP reporting: Hold down the hands-free button for ten seconds and release to automatically transmit your IP address. Alternatively, lift the handset and dial **9*114* for automated IP reporting.
  2. This device offers five SIP accounts, with the system automatically switching them according to connection status to guarantee uninterrupted calls.
  3. It includes two emergency buttons for instant dialing to a predefined number.





Dimension Diagram

wpspic0





FAQ



Q:What are the differences between device casings made of different materials? How should I choose?

A:In waterproof and explosion-proof telephone products, we mainly use aluminum alloy or new composite materials (fiberglass) to make the shell. Aluminum alloy is more robust, heat-resistant, and impact-resistant, so it is often used in places with high explosion risk. Fiberglass is not metal, and although it is not as hard as aluminum alloy, its material properties are stable and it is not easily corroded by chemicals or rusted due to long-term moisture, making it suitable for coastal areas, flood-prone areas, or chemical plants.

Q:What is the delivery time for the order?

A:This depends on the order quantity. Based on our production line, historical order delivery times are around 15-20 days.
